Silicone Resin for Impregnating Varnish Manufacturers
Silicone resins are critical raw materials for high-performance impregnation varnishes. Impregnation varnishes are widely used to treat glass cloth, glass fiber sleeves and other electrical insulating materials. Their final products work in motors, transformers, generators and more fields.
For impregnation varnish manufacturers, choosing the right silicone resins is key. It helps get excellent heat resistance, electrical strength and long-term stability. This article will introduce the roles of different silicone resin types in impregnation varnish formulas. It will also cover their applications in glass fiber insulation systems.
Overview of Impregnating Varnish for Electrical Insulation

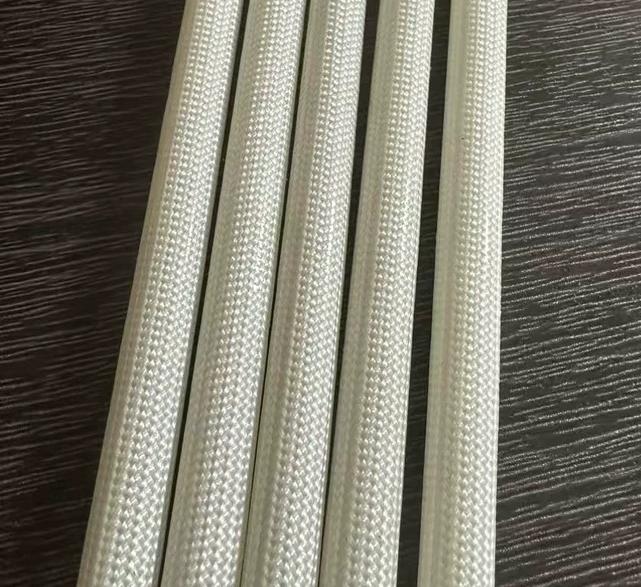

Impregnating varnish for electrical insulation – especially the kind used in glass fiber cloth, glass fiber sleeves and similar products – is the softest type of silicone paint film.
This type of silicone varnish has both the flexibility of rubber and the flame resistance of resin. Products treated with this impregnating varnish have enough adhesion, thermal elasticity, wear resistance and scratch resistance.
It is widely used for insulation and moisture protection of wiring around car engines and heating appliances. It also works as wrapping material and insulation/moisture-proof covers for coils in motors, dry-type transformers and household appliances.
Why Silicone Resin Is Ideal for Impregnating Varnish Formulation?
Silicone resins stand as the core raw material for high-performance impregnating varnishes, thanks to their unique Si–O–Si backbone and outstanding properties.
Excellent Heat Resistance
The Si–O–Si backbone has a bond energy of up to 460kJ/mol, far exceeding the 347kJ/mol of carbon-carbon bonds. This gives silicone resins exceptional thermal stability: they lose only 2%-8% of their weight after 24 hours of continuous work at 250℃, and tolerate extreme temperature cycles from -60℃ to 300℃. Cured paint films stay stable at 180–200℃, allowing the entire insulation system to reach Class H or higher.
Good Electrical Insulation
Silicone resins have a volume resistivity of 10¹²Ω・cm, a dielectric loss tangent below 0.001 (at 1MHz), and a breakdown strength of 90-98KV/mm². Their dielectric constant and dielectric loss tangent change little over wide temperature and frequency ranges. They also show excellent arc and corona resistance—arc resistance is twice that of epoxy resins—keeping stable insulation performance in complex electrical environments like high voltage and high frequency.
Strong Adhesion
The siloxane bonds in silicone resin molecules have slight polarity. They form hydrogen bonds or chemical bonds with hydroxyl groups on the surface of glass fibers, copper wires, and inorganic substrates. This creates firm bonding, ensures good adhesion between the impregnating varnish and the impregnated material, and boosts the insulation system’s integrity and reliability.
Good Flexibility
Though silicone resins have high thermal stability and rigidity, proper molecular structure design and formula adjustment let them stay flexible during repeated thermal cycles. This prevents paint film cracking or peeling from thermal expansion and contraction, ensuring the insulation system remains intact for long-term use.
Easy Modification
Silicone resins can be modified by copolymerizing with alkyd, epoxy, or polyester structures. This adjusts properties like viscosity, curing speed, and surface hardness. For example, in methylphenyl silicone resins: methyl groups improve solubility and film-forming ability, while phenyl groups enhance high-temperature resistance and oxidation resistance. This balance lets impregnating varnish manufacturers get excellent impregnation results and mechanical strength while maintaining dielectric performance.
Chemical Inertness and Long-Term Stability
The silicone resin backbone has no double bonds, so it resists UV rays, ozone, and common chemicals well. Its outdoor service life can exceed 20 years. This chemical inertness and long-term stability ensure impregnated materials (like glass cloth and glass fiber sleeves) keep excellent insulation performance even in high-temperature and high-voltage environments.
Selecting the Right Silicone Resin for Impregnating Varnish Production
1. Methyl Phenyl Silicone Resin
It is the mainstream choice with the largest usage.
Key Features
- Its molecular backbone is Si–O–Si, with methyl (–CH₃) and phenyl (–C₆H₅) groups on the side chains.
- Combines good heat resistance and flexibility.
- Phenyl groups enhance high-temperature resistance (can withstand 200℃ for a long time); methyl groups improve solubility and film-forming ability.
Applicable Fields
- Motor coil impregnating varnish
- Glass cloth impregnating varnish
- Sleeve varnish, mica adhesive
- Class H and above electrical insulation systems (180℃ class)
Representative Resins
- MQ-type methyl phenyl silicone resin
- Modified polyester-silicone copolymer resin
- Epoxy-modified silicone resin (enhances adhesion and hardness)
2. Phenyl Silicone Resin
It is a high heat-resistant raw material.
Features
- Contains a high proportion of phenyl structures.
- Maintains insulation while significantly improving heat resistance (up to 250℃).
- Has excellent mechanical strength and crack resistance.
Applications
- High-end motors, aviation coil impregnating varnish
- High-frequency, high-temperature transformer varnish
- Mica adhesives, radiation-resistant electrical insulating varnish
3. Alkyd-Modified Silicone Resin
It is used to improve workability and film-forming ability.
Features
- Copolymerizes silicone resin with alkyd resin.
- Reduces viscosity and improves solubility, making it easy to coat and impregnate.
- Forms a film with high hardness and strong adhesion.
Applications
- Often used in solvent-based impregnating varnish
- Medium-low temperature curing varnish (cures at 150~180℃)
4. Epoxy-Modified Silicone Resin
It is used to improve the mechanical strength and adhesion of paint films.
Features
- Introduces epoxy structure into the Si–O–Si backbone.
- Enhances bonding with metal copper wires and glass fibers.
- Improves electrical strength and enables denser curing.
Applications
- Coil impregnating varnish, sleeve insulating varnish
- Special-purpose arc-resistant insulating varnish
Conclusion — The Key Role of Silicone Resins in Electrical Insulation Systems
Silicone resins serve as the core raw material in the formulation of high-performance impregnating varnishes used across the electrical insulation industry. Their unique molecular structure—combining inorganic Si–O bonds with organic functional groups—provides an exceptional balance of thermal stability, dielectric strength, and mechanical durability.
In applications such as glass cloth, fiberglass sleeving, and mica tape, silicone resin-based varnishes ensure long-term insulation reliability even under high temperatures and harsh environments. For manufacturers of insulating varnishes, selecting the right grade of silicone resin—such as methyl silicone resin, methyl phenyl silicone resin, or modified hybrid systems—is crucial to achieving optimal curing behavior and adhesion performance.
As the demand for high-efficiency electrical equipment and sustainable insulation materials continues to grow, silicone resins will remain an indispensable foundation for advanced impregnating varnish production.
By partnering with reliable suppliers of high-purity silicone resins, manufacturers can enhance product stability, reduce process variability, and stay competitive in the evolving insulation materials market.
